6 – 8gpm
ultraviolet water
disinfection system
| Flow Rate | - 30mJ/cm2: | 8gpm (30L) ( 1.8m3/hr) |
|---|---|---|
| - 40mJ/cm2: | 6gpm (23L) ( 1.38m3/hr) |
- Reversible mounting bracket eases installation.
- PEX compatible 3/4" MNPT GloGuardTM ports speed installation.
- NSF 42 certified filter housings have double “O” rings for leak prevention.
- Easy-service lamp connector simplifies maintenance - no tools required.
- Microprocessor controlled power source includes audible and visible lamp failure alarms, lamp life remaining feature, and annual lamp change timer.
- UV lamps are USA manufactured with a long-life coating, rated for 9,000hrs.
- Reactor chambers are welded in Canada using 304 stainless steel.
- Power sources and chambers are designed and manufactured in Canada.
- ¼” drain plug facilitates winterization.

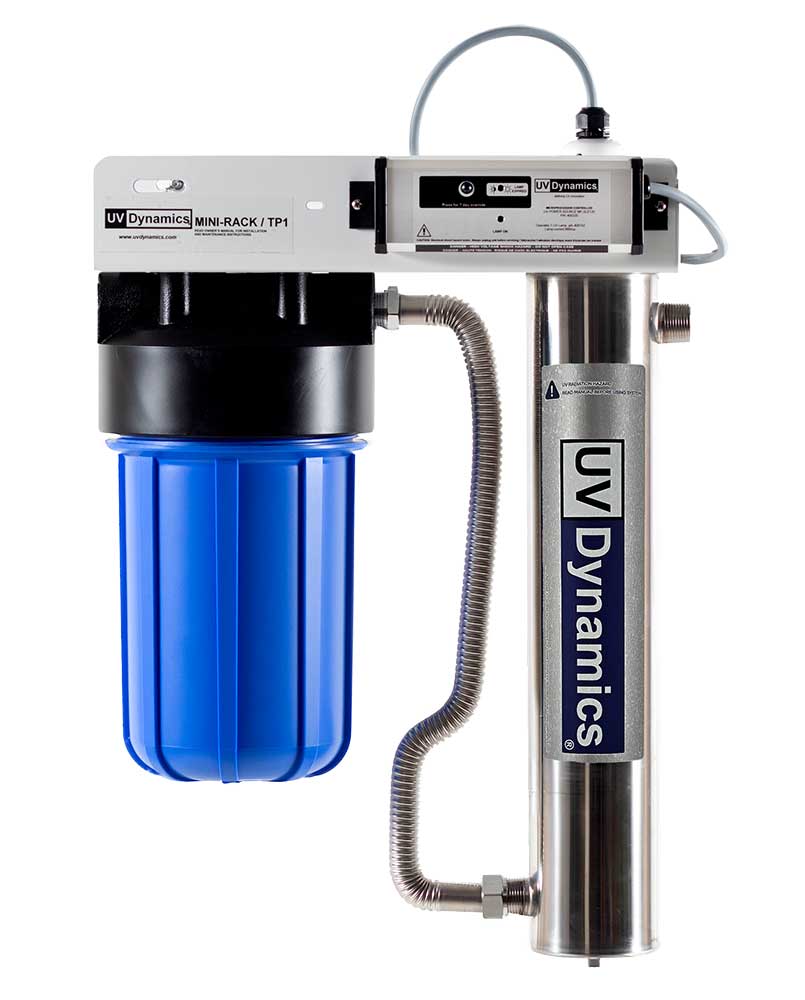

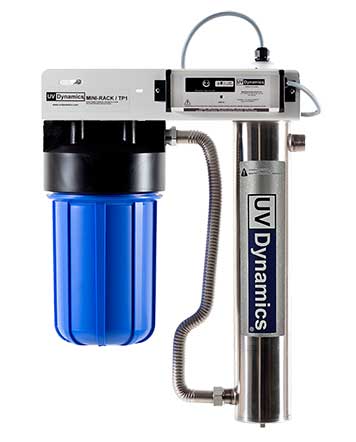

UVDynamics Mini-Rack Systems combine up to three standard or big blue style filter housings and a UV disinfection system into one simple, clean looking, and integrated product line. Manufactured from rugged 10 gauge HR commercial grade steel and finished in a tough powder coat finish, the system will look good new for many years.
UVDynamics Mini-Rack systems speed installation, are easy to service, and provide lasting value. Ideal for homes, cottages and treating harvested rainwater!
See brochure for some suggested combinations of filter housing types and sizes!
MR240E Brochure - Showing Possible MR240E Combinations
