Standalone Systems

PRODUCT FEATURES

Flow Rate	- 30mJ/cm2:	16gpm (60L) ( 3.6m3/hr)
	- 40mJ/cm2:	12gpm (45L) ( 2,7m3/hr)

• Easy-service lamp connector simplifies maintenance - no tools required.
• Microprocessor controlled power source includes audible and visible lamp failure alarms, lamp life remaining feature, and annual lamp change timer.
• UV lamps are USA manufactured with a long-life coating; rated for 9,000hrs.
• Disinfection chambers are welded in Canada using 304 stainless steel.
• Power sources and chambers are designed and manufactured in Canada.
• Available in 3 models to suit varying system requirements:

    UVD485E: basic model
    UVD485: + solenoid compatible
    UVD485/S: + UV intensity monitor (calibrated at 40mJ/cm²)

OVERVIEW

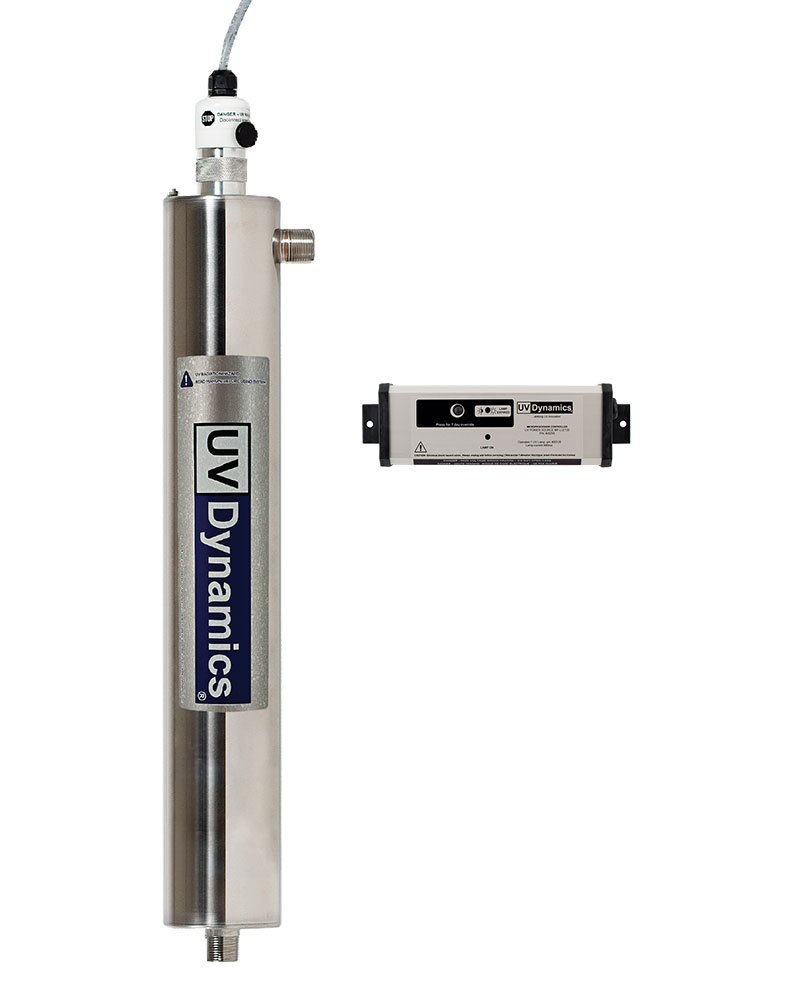

The UVD485 is applicable to point of entry applications in today’s larger homes and cottages. The 30mJ/cm² dose of the UVD485 at 16gpm is ideal for general disinfection. The compact mounting footprint facilitates installations where space is limited.

The UVD485 system was designed using sophisticated computer modeling software, and then verified by independent third-party testing using accepted biodosimetry methods by GAP EnviroMicrobial Services.
