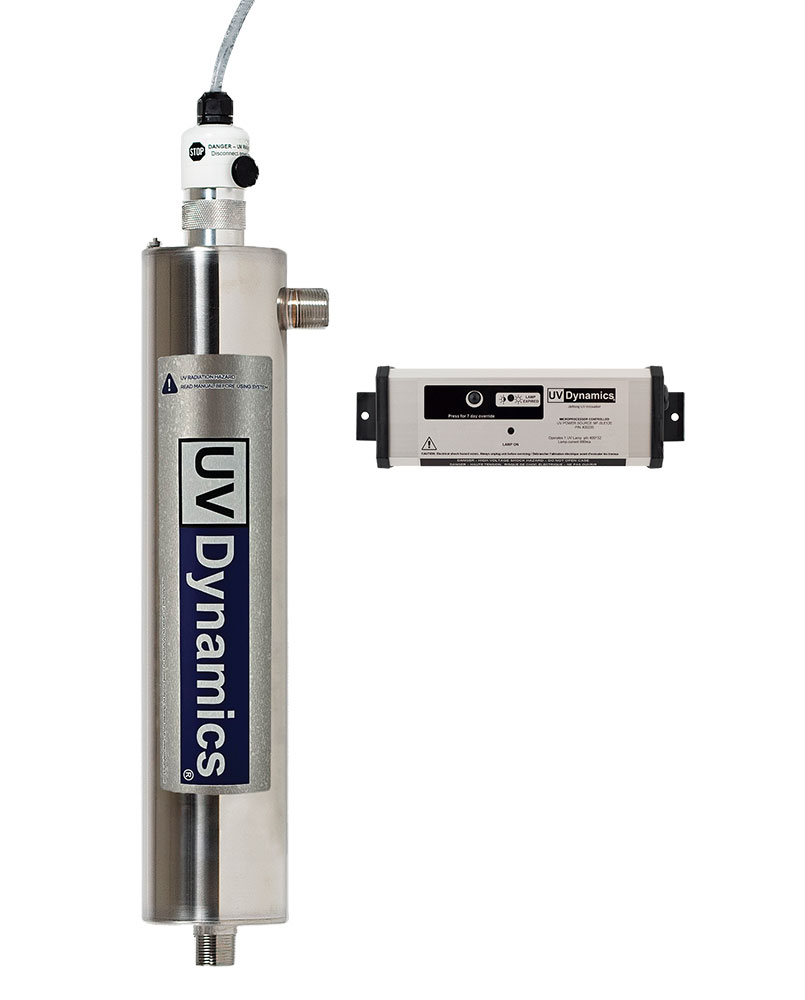

UVD320
ultraviolet water
disinfection system
ultraviolet water
disinfection system
PRODUCT FEATURES
| Flow Rate | - 30mJ/cm2: | 10gpm (37L) ( 2.2m3/hr) |
|---|---|---|
| - 40mJ/cm2: | 8gpm (30L) ( 1.8m3/hr) |
- Easy-service lamp connector simplifies maintenance - no tools required.
- Microprocessor controlled power source includes audible and visible lamp failure alarms, lamp life remaining feature, and annual lamp change timer.
- UV lamps are USA manufactured with a long-life coating; rated for 9,000hrs.
- Disinfection chambers are welded in Canada using 304 stainless steel.
- Power sources and chambers are designed and manufactured in Canada.
- PEX friendly 3/4"MNPT GloGuardTM ports speed installation.
- Available in 3 models to suit varying system requirements:
UVD320E basic model
UVD320 + solenoid compatible
UVD320/S + UV intensity monitor (calibrated at 40mJ/cm2)
OVERVIEW
The UVD320 system is suited to point of entry installation in homes and cottages with moderate water demands. The 30mJ/cm2 dose of the UVD320 at 10gpm is ideal for general disinfection. The compact mounting footprint facilitates installations where space is limited.
The UVD320 system was designed using sophisticated computer modeling software, and then verified by independent third-party testing using accepted biodosimetry methods by GAP EnviroMicrobial Services.
