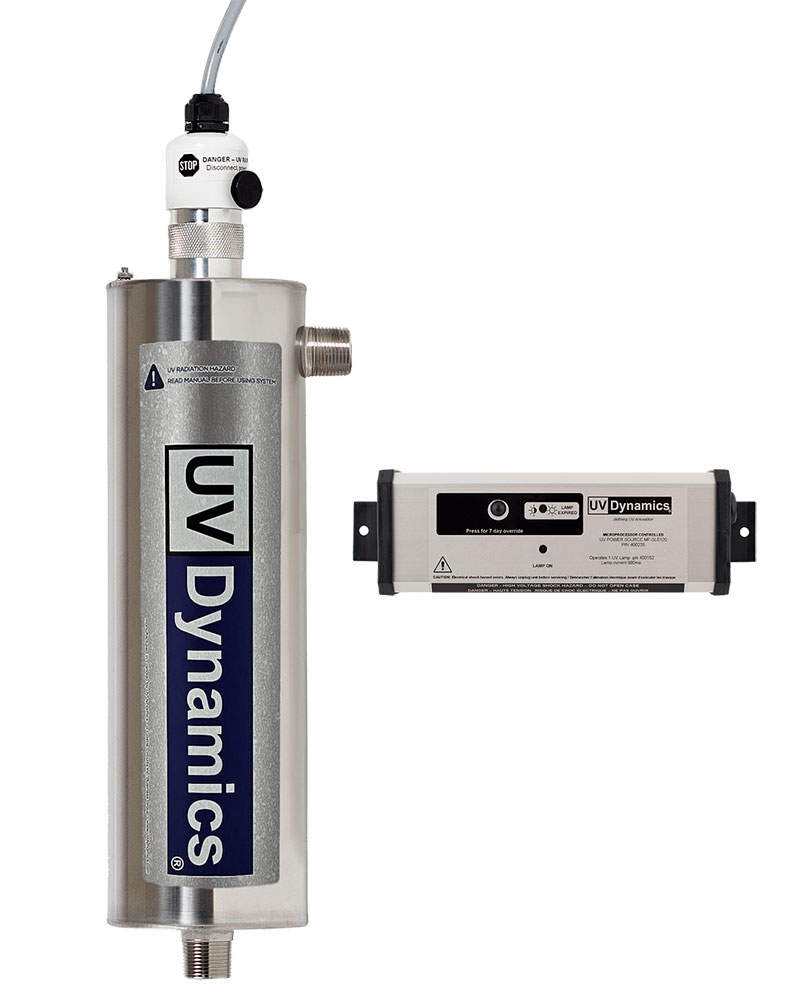

UVD245E
ultraviolet water
disinfection system
ultraviolet water
disinfection system
PRODUCT FEATURES
| Flow Rate | - 30mJ/cm2: | 8gpm (30L) ( 1.8m3/hr) |
|---|---|---|
| - 40mJ/cm2: | 6gpm (23L) ( 1.36m3/hr) |
- Easy-service lamp connector simplifies maintenance - no tools required.
- Microprocessor controlled power source includes audible and visible lamp failure alarms, lamp life remaining feature, and annual lamp change timer.
- UV lamps are USA manufactured with a long-life coating, rated for 9,000hrs
- Reactor chambers are welded in Canada using 304 stainless steel.
- Power sources and chambers are designed and manufactured in Canada.
- PEX compatible 3/4"MNPT GloGuardTM ports speed installation.
OVERVIEW
The UVD245E system is suited to point of entry installation in homes and cottages with lower water demands. The 30mJ/cm2 dose of the UVD245E at 8gpm is ideal for general disinfection. The compact mounting footprint is ideal for a range of applications including whole-home, under the sink, and OEM utilizations.
The UV245E system was designed using sophisticated computer modeling software and then verified by independent third-party testing using accepted biodosimetry methods by GAP EnviroMicrobial Services.
