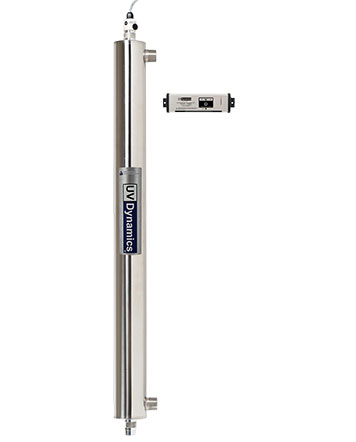

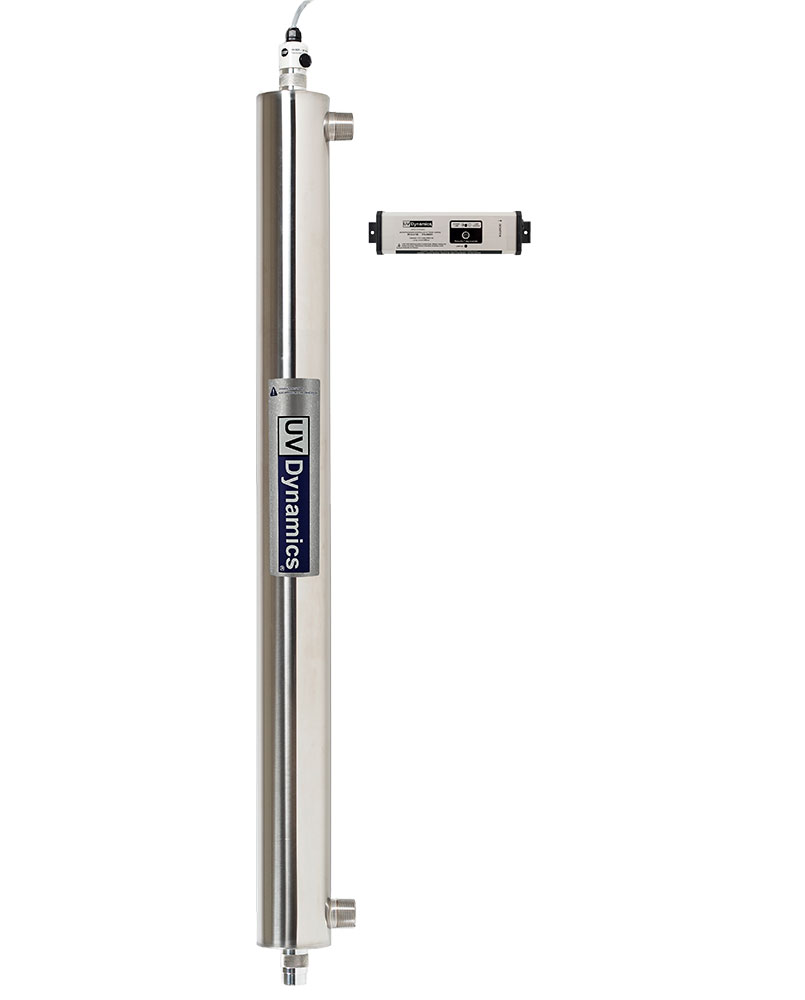

UVD1500
ultraviolet water
disinfection system
ultraviolet water
disinfection system
PRODUCT FEATURES
| Flow Rate | - 30mJ/cm2: | 50gpm (189L) ( 11.3m3/hr) |
|---|---|---|
| - 40mJ/cm2: | 37gpm (140L) (8.4m3/hr) |
- Easy-service lamp connector simplifies maintenance - no tools required.
- Microprocessor controlled power source includes audible and visible lamp failure alarms, lamp life remaining feature, and annual lamp change timer.
- UV lamps are USA manufactured with a long-life coating; rated for 9,000hrs.
- Disinfection chambers are welded in Canada using 304 stainless steel.
- Power sources and chambers are designed and manufactured in Canada.
- Solenoid valve compatibility for automatic shut-off during alarm conditions.
- Optional model available: UVD1500/S with UV intensity monitor (Calibrated at 40 mJ/cm2) .
OVERVIEW
The UVDynamics model UVD1500 is applicable for general disinfection in smaller commercial / industrial applications. The 30mJ/cm2 dose of the UVD1500 at 50gpm is ideal for general disinfection.
The UVD1500 system was designed using sophisticated computer modeling software, and then verified by independent third-party testing using accepted biodosimetry methods by GAP EnviroMicrobial Services.
