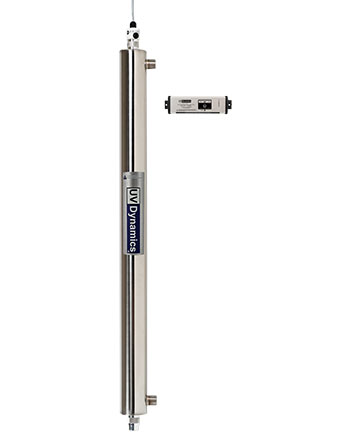

UVD1200
ultraviolet water
disinfection system
ultraviolet water
disinfection system
PRODUCT FEATURES
| Flow Rate | - 30mJ/cm2: | 40gpm (151L) ( 9.0m3/hr) |
|---|---|---|
| - 40mJ/cm2: | 30gpm (113L) ( 6.8m3/hr) |
- Easy-service lamp connector simplifies maintenance - no tools required.
- Microprocessor controlled power source includes audible and visible lamp failure alarms, lamp life remaining feature, and annual lamp change timer.
- UV lamps are USA manufactured with a long-life coating; rated for 9,000hrs.
- Disinfection chambers are welded in Canada using 304 stainless steel.
- Power sources and chambers are designed and manufactured in Canada.
- Solenoid valve compatibility for automatic shut-off during alarm conditions.
- Optional model available: UVD1200/S with UV intensity monitor (Calibrated at 40 mJ/cm2) .
OVERVIEW
The UVDynamics model UVD1200 is applicable for general disinfection in smaller commercial / industrial applications. The 30mJ/cm2 dose of the UVD1200 at 40gpm is ideal for general disinfection.
The UVD1200 system was designed using sophisticated computer modeling software, and then verified by independent third-party testing using accepted biodosimetry methods by GAP EnviroMicrobial Services.
