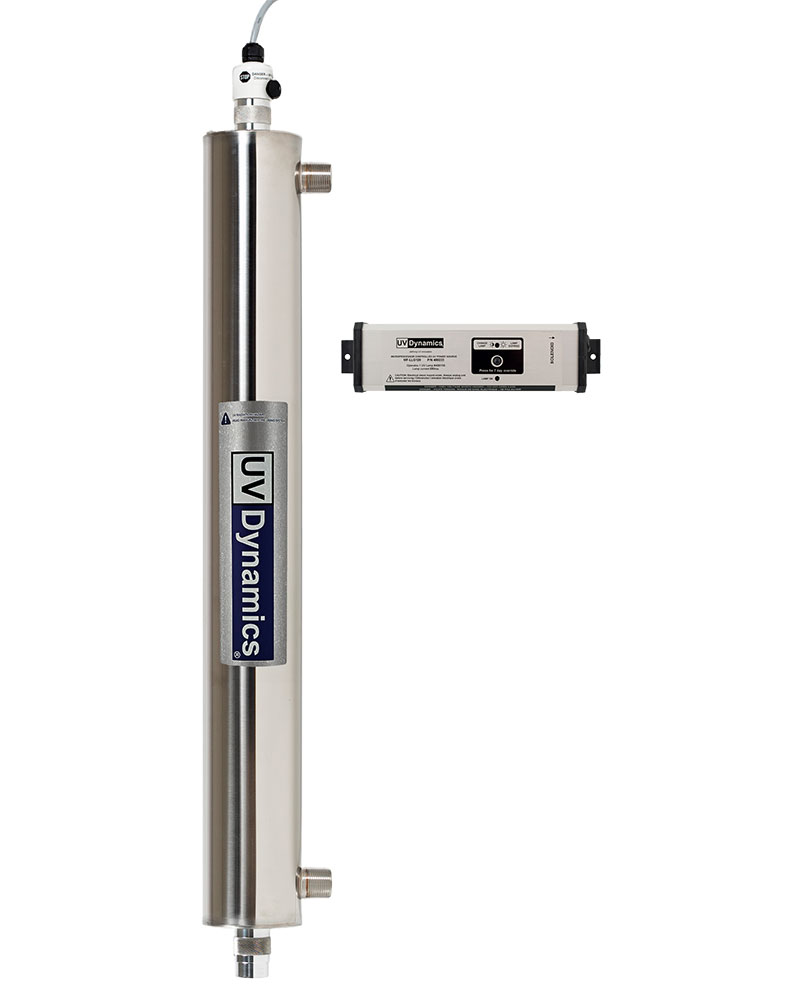

UVD1000
ultraviolet water
disinfection system
ultraviolet water
disinfection system
PRODUCT FEATURES
| Flow Rate | - 30mJ/cm2: | 33gpm (125L) ( 7.5m3/hr) |
|---|---|---|
| - 40mJ/cm2: | 25gpm (94L) (5.7m3/hr) |
- Easy-service lamp connector simplifies maintenance - no tools required.
- Microprocessor controlled power source includes audible and visible lamp failure alarms, lamp life remaining feature, and annual lamp change timer.
- UV lamps are USA manufactured with a long-life coating; rated for 9,000hrs
- Disinfection chambers are welded in Canada using 304 stainless steel.
- Power sources and chambers are designed and manufactured in Canada.
- Solenoid valve compatibility for automatic shut-off during alarm conditions.
- Optional model available: UVD1000/S with UV intensity monitor (Calibrated at 40 mJ/cm2) .
OVERVIEW
The UVD1000 is suitable for higher-flow, whole-house point-of-entry applications in larger modern homes, as well as light commercial or small industrial settings. The 30mJ/cm2 dose of the UVD1000 at 33gpm is ideal for general disinfection.
The UVD1000 system was designed using sophisticated computer modeling software, and then verified by independent third-party testing using accepted biodosimetry methods by GAP EnviroMicrobial Services.
