NSF/ANSI 55 Systems

• Advanced UV Detection System is designed to minimize nuisance alarms.
• Patented UV sensor with leak resistant one-piece PTFE primary probe body features a removeable cap and secondary window to quickly resolve alarms due to fouling.
• Easy-service lamp connector simplifies maintenance - no tools required.
• Microprocessor controlled power source includes audible and visible lamp failure alarms, annual lamp change timer, and low UV alarm.
• The display shows actual UV dose in mJ/cm².
• Integrated flow regulator maintains certified flow rate.
• UV lamps are USA manufactured with a long-life coating, and rated for 9,000hrs of service.
• Disinfection chambers are welded in Canada using 304 stainless steel.
• Power sources and chambers are designed and manufactured in Canada.
• Power source has solenoid valve compatibility for optional automatic shut-off during alarm conditions.

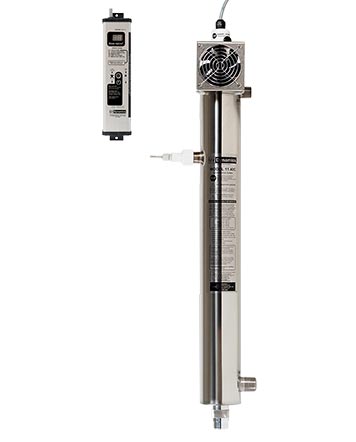

With its 11gpm flow, the UVD11.40C is suitable for use in homes and cottages, as well as smaller regulated applications. The proprietary extended Cold Spot^TM lamp design, combined with the active temperature controlled Cold Spot^TM cooling fan, results in improved lamp output during stagnant hot water conditions.
